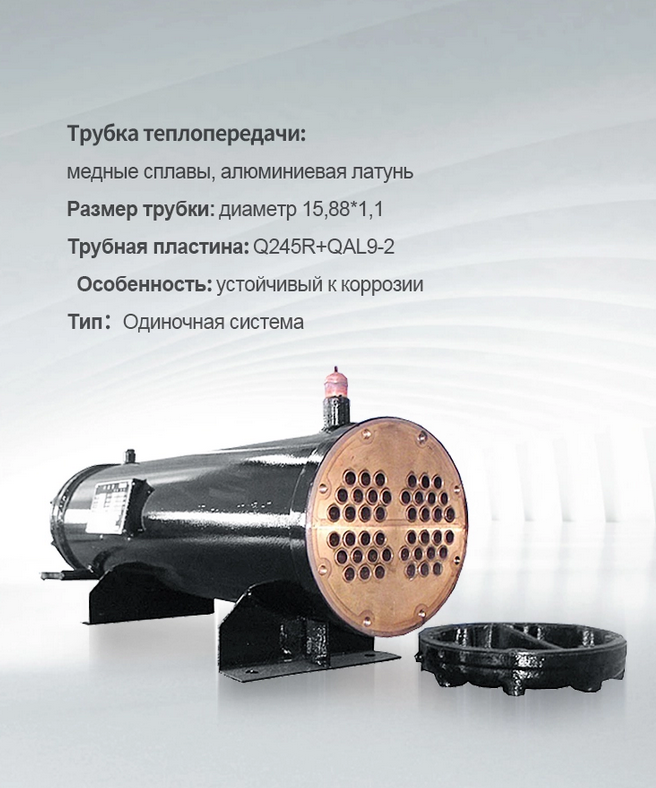

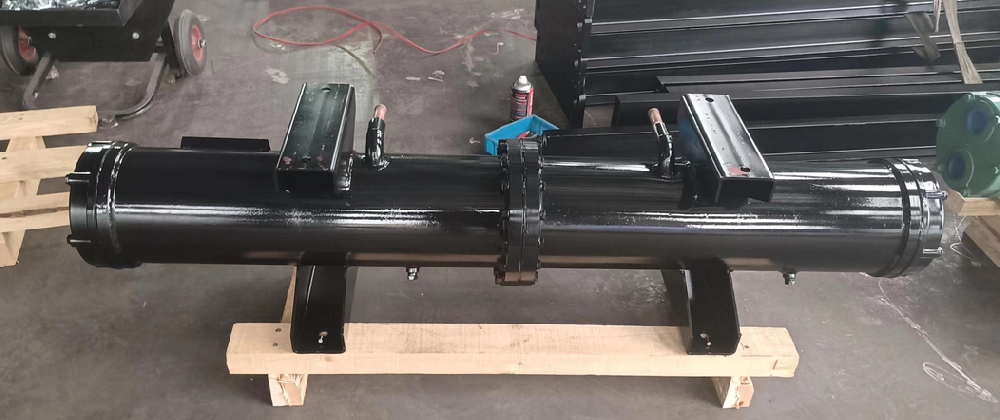

Shell and tube condenser is a kind of heat exchanger commonly used in refrigerators and heat exchange equipment, similar to shell and tube evaporator.
Tube sheets are welded to both ends of the shell to form a complete shell.
Many tube holes are processed on the tube plate.
After the heat transfer tube bundle penetrates into the tube hole, both ends are connected to the tube plate by expansion or welding, which has good air tightness.According to the spatial orientation (vertical or horizontal) of the shell and the heat transfer tube bundle, condenser can be divided into two types: vertical and horizontal.
